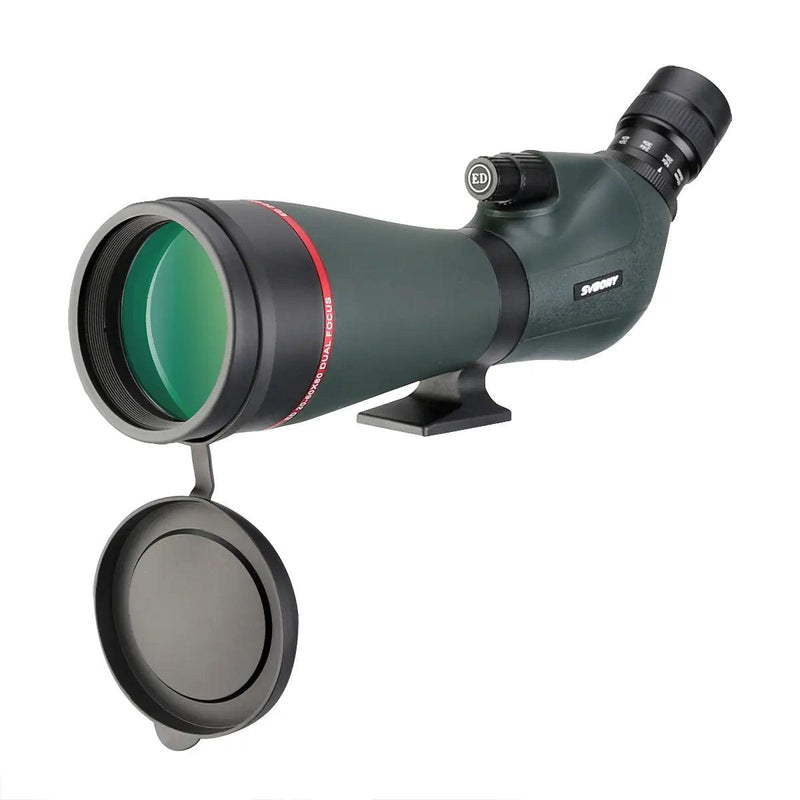

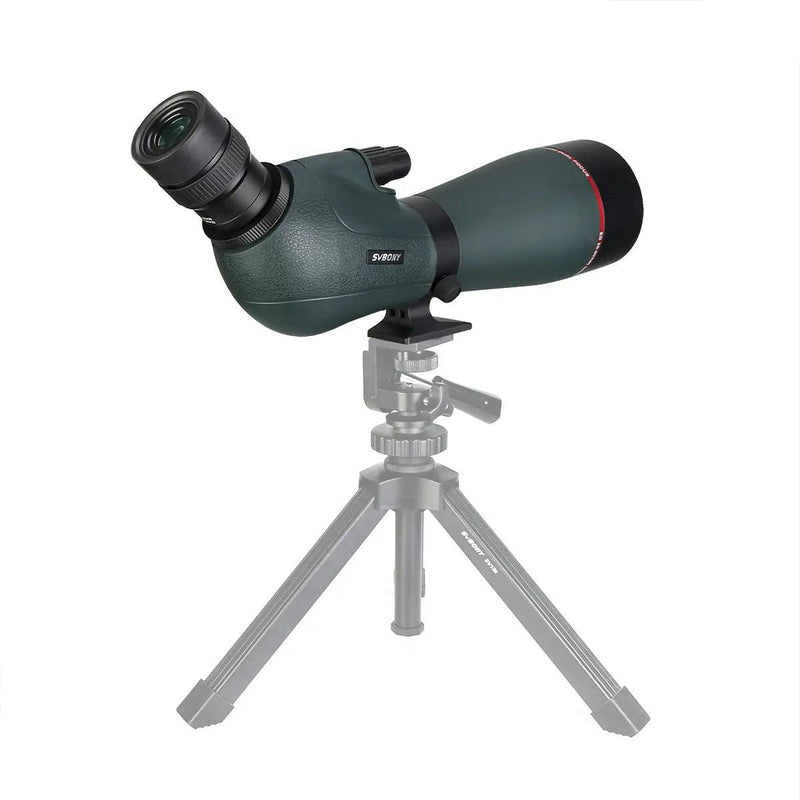

SVBONY SV406P 20-60X80 ED Dual Focus Spotting Scope (F9355B)

Name: SVBONY SV406P 20-60X80 ED Dual Focus Spotting Scope (F9355B)
Rating: 5.00 (2 reviews)

by Svbony

SKU SVB-F9355B

$406.00 - $406.00

$406.00

$406.00 - $406.00

$406.00

FREE SHIPPING FOR ORDERS OVER 500$* 🆓🚚😃

*Some exceptions may apply. More info

📦 We Have it in Stock? We're on it, shipping your order on the same day. *(Ordered before 1PM & Business Hours only / This is an estimation and may vary)

🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed.

Parameter	Value
Model	SV406P
Magnification	20× — 60×
Objective (Front) Diameter	80 mm
Objective Glass Material	Extra‑Low Dispersion (ED) glass
Focal Length	430 mm
Objective Lens Construction	3 elements / 3 groups
Eyepiece Diameter	24 mm
Eyepiece Barrel Size	1.25‑inch
Zoom Eyepiece Construction	7 elements / 4 groups
Prism Type	Porro prism
Prism Glass	H‑K9L
Prism Coating	Fully Multi‑Coated (FMC)
Total Lens / Prism System	10 pieces / 7 groups
Real Field of View	2.1° – 1.1°
Apparent Field of View	42° – 66°
Field of View at 1000 yds	108 ft – 60 ft
Field of View at 1000 m	36 m – 20 m
Resolution	2.0″ (arcseconds)
Closest (Near) Focus	18 ft / 5.5 m
Relative Brightness	16 @ 20× / 1.69 @ 60×
Exit Pupil	4.0 mm (at 20×) – 1.33 mm (at 60×)
Eye Relief	20 mm (at low end) – 18 mm (at high end)
Lens Coating	Fully Multi‑Coated (FMC)
Focus System	Dual focus (coarse + fine)
Focus Type	Internal Porro prism focusing
Nitrogen Filled / Fog Proof	Yes
Waterproof Rating	IPX5
Eyecup Type	Twist‑up
Net Weight	1,625 g (≈ 3.58 lb / 57.32 oz)
Dimensions	405 × 180 × 120 mm
