Starfield ED80 F/7 560mm APO Doublet Refractor (S80)

Name: Starfield ED80 F/7 560mm APO Doublet Refractor (S80)
Rating: 5.00 (1 reviews)

by Starfield

SKU SF-S80-07-00

$1,000.00 - $1,000.00

$1,000.00

$1,000.00 - $1,000.00

$1,000.00

FREE SHIPPING FOR ORDERS OVER 500$* 🆓🚚😃

*Some exceptions may apply. More info

📦 We Have it in Stock? We're on it, shipping your order on the same day. *(Ordered before 1PM & Business Hours only / This is an estimation and may vary)

🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed.

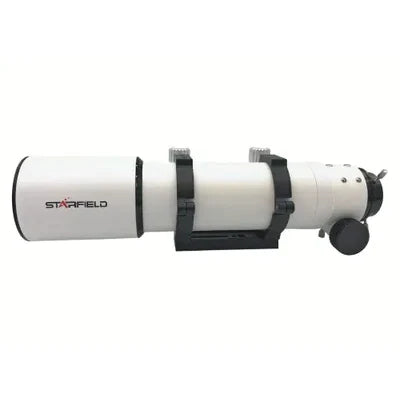

Starfield ED80 F/7 560mm APO Doublet Refractor

The All new Starfield Optics ED80 APO doublet telescope package packs a punch!
This telescope system can be used for visual applications and imaging. The complete package includes a 20mm wide angle eyepiece, 50mm right angle finder scope, 2" diagonal, and a soft case with die cut foam to keep it all together for storage and transportation. Along with heavy duty rings, a vixen style dovetail bar, and rack and pinion 2 speed focuser this telescope is build for users of all levels.
For photographic use this telescopes offer two possible focal lengths. At f/7 you get the full focal length of 560mm, and if the Starfield 0.8x reducer is added the new focal length of 448mm is achieved bring the focal ration down to f/5.6.
Features

80mm ED Glass Doublet
560 mm Focal Length f/7
Excellent for Visual observation or imaging when used with Starfield reducers or flatteners
Retractable Dew Shield
Heavy Duty Rings and V Style dovetail
2" 2 Speed RP focuser
50mm Guide RA illuminated finder scope
2" Diagonal, 20mm WA Eyepiece and soft Carry case

True 2 speed rack and Pinion focuser. Strong enough to securely hold your heavy eyepieces or camera equipment.

Compact and easy to transport.

Technical Specifications

Aperture: 80 mm

Focal length: 540 mm

Focal ratio: f/7

Lens design: 2 element lens (ED doublet), air-spaced

Tube material: Aluminum - CNC machined

Tube weight: 3.10 kg

Tube length: 460 mm

Tube diameter: 89 mm

Outer diameter dew shield: 103.6 mm

Focuser: ball bearing mounted 2" rack and pinion focuser

Connection eyepiece side: 1.25", 2" and female M63x1 thread

Back focus: 123 mm from 2" receptacle / 161 mm from M63 thread

In the Box

80mm ED Glass Doublet
Retractable Dew Shield
Heavy Duty Rings and V Style dovetail
2" 2 Speed RP focuser
50mm Guide RA illuminated finder scope
2" Diagonal, 20mm WA Eyepiece and soft Carry case

Manuals & Warranty

Starfield Branded Telescope Limited 3-Year Warranty

5 stars: 1 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Service was great! Delivery was quick

Service was great! Delivery was quick. Product was well packed. There was a piece missing in the package and it was corrected the next day. Highly recommend for pricing, delivery and after service!

Thank you so much for the kind words! We're really glad the missing piece was sorted out quickly, that's exactly the kind of after-sales service we strive for. We appreciate you taking the time to highlight it! Looking forward to serving you again soon.
