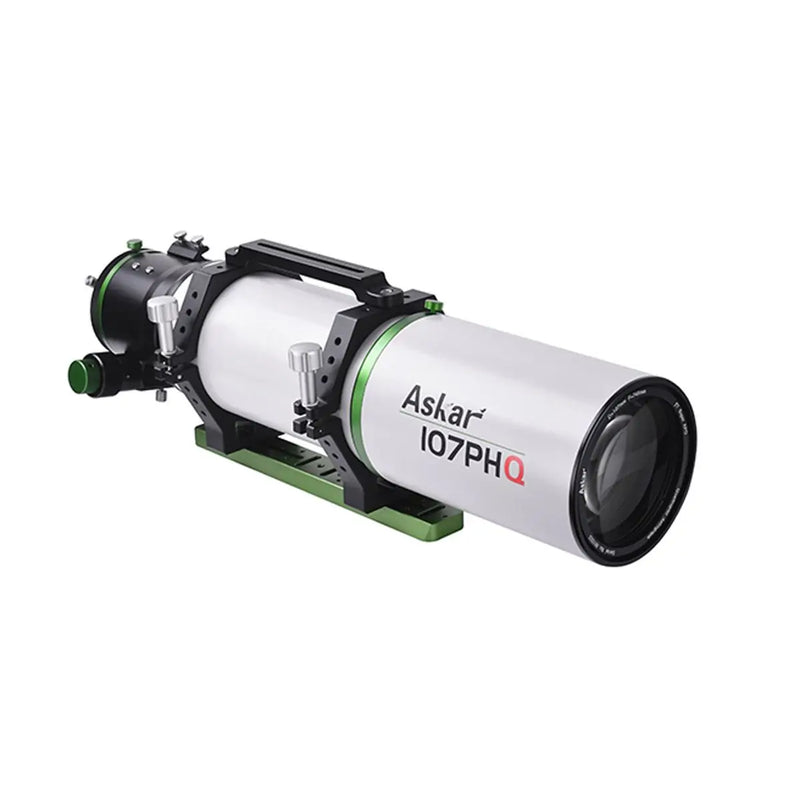

Askar 107PHQ Astrograph

Askar 107 PHQ, a versatile all-rounder
Askar 107PHQ can literally be applied in any conceivable situations, and that’s the top reason why 107PHQ is produced: to slash as much trouble for users as possible.

Including 2 inch interface

Askar 107PHQ can capture tiny star objects due to its 740mm focal length and astonishing field flattening capacity. When used Askar 107PHQ and a high-resolution camera, it can still bring out lots of detailed information of your target.
Askar 107PHQ is also a nice choice for your visual observation. It fits 1.25", 2" zenith mirrors as well as various eyepieces and can achieve a perfect focus. It can even be used to observe planets with a super-high magnification eyepiece.

Askar 107PHQ, an f/7 astrograph, contains four pieces of lenses including two pieces of ED glass, which can better reduce chromatic aberration. It can achieve excellent color correction even with the magnification mounting to 300× in visual observation.

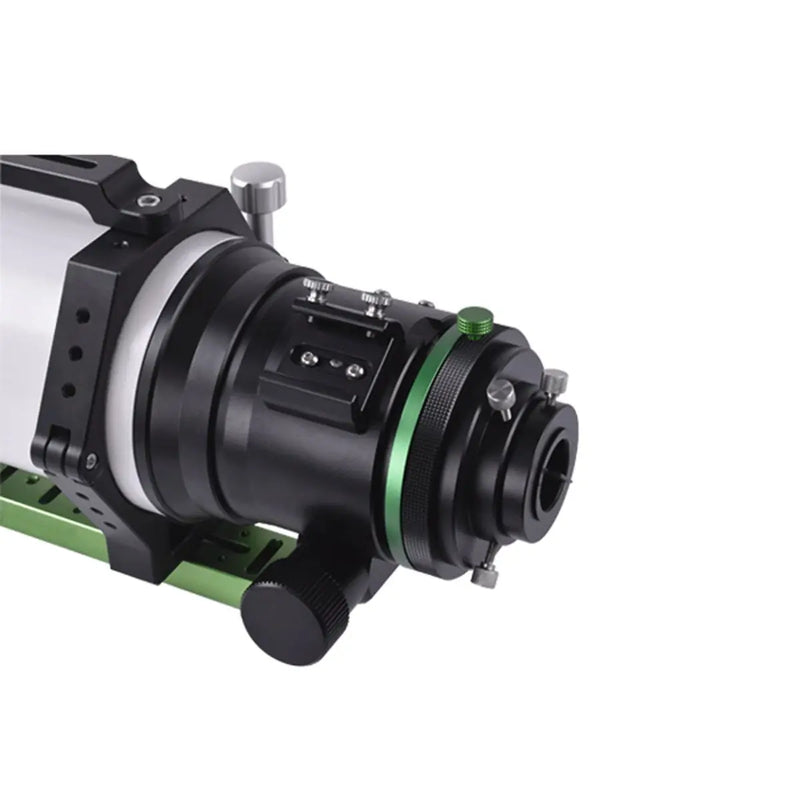

The sleek 107PHQ is assembled with high-quality CNC-machined components and wrapped with smooth coating. The calm and seriousness is offset by the bright green decorative rings or knobs. The 3.4" rigid focuser is capable of handling a load of 8kg. It’s designed with a long travel distance of 95mm, which is suitable for visual observation. And it’s been optimized especially for astrophotography.

The built-in Flatfield lens is a great contribution to Askar 107PHQ’s imaging ability. It supports 44mm full-frame imaging. The stars around the corner of the images seldom suffer from distortion or deformation. At the center of its field of view, the RMS radius is merely 3um. Even a fastidious user can also be satiated when it comes to the shape of stars. Askar 170PHQ can effectively handle with problems of field curvature and vignette.

Technical Specifications

Aperture size：107mm
Focal length：749mm
Focal ratio：f/7
Objective lens：Quadruplet air-spaced APO (including two ED glass)
Image circle：44mm
Maximum accessory connection (with the focuser fully retreated)：
1. Imaging mode:
79mm (from the base of M48×0.75 male thread)
99mm (from the base of M54×0.75 male thread)
119mm (from the base of M68×1male thread)
149mm (from the base of M86×1 male thread)
2. Observing mode:
120mm (from the end of 2" visual back)
Total length：603mm（when the dew shield is contracted）
754mm（when the dew shield is stretched）
Net weight：5.7kg
Gross weight：6.9kg

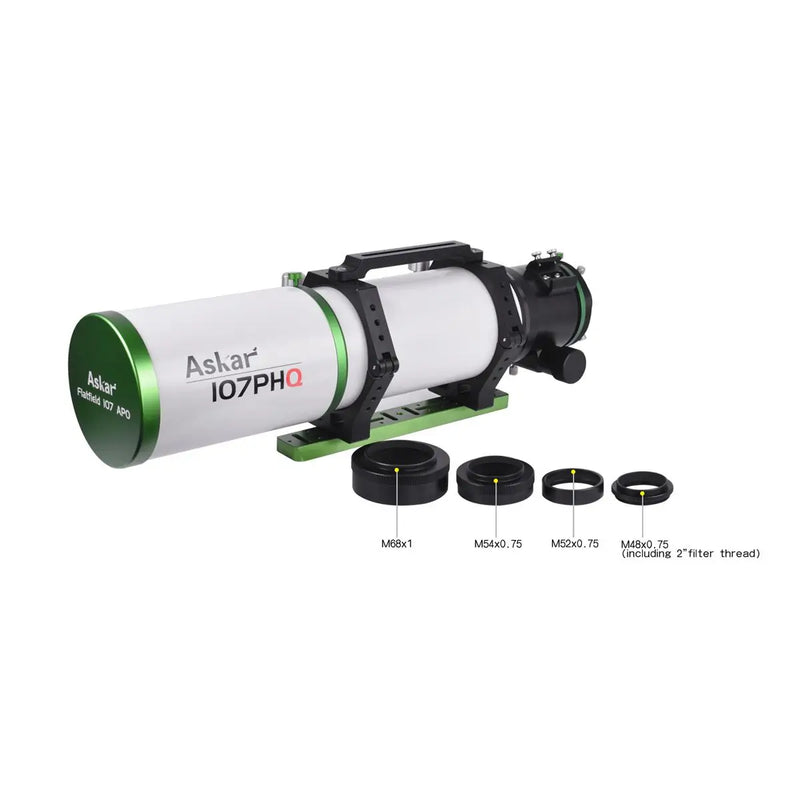

Rear-end thread type：M86×1 to M68×1
M68×1 to M54×0.75
M54×0.75 to M52×0.75
M52×0.75 to M48×0.75（with M48×0.75 filter thread）

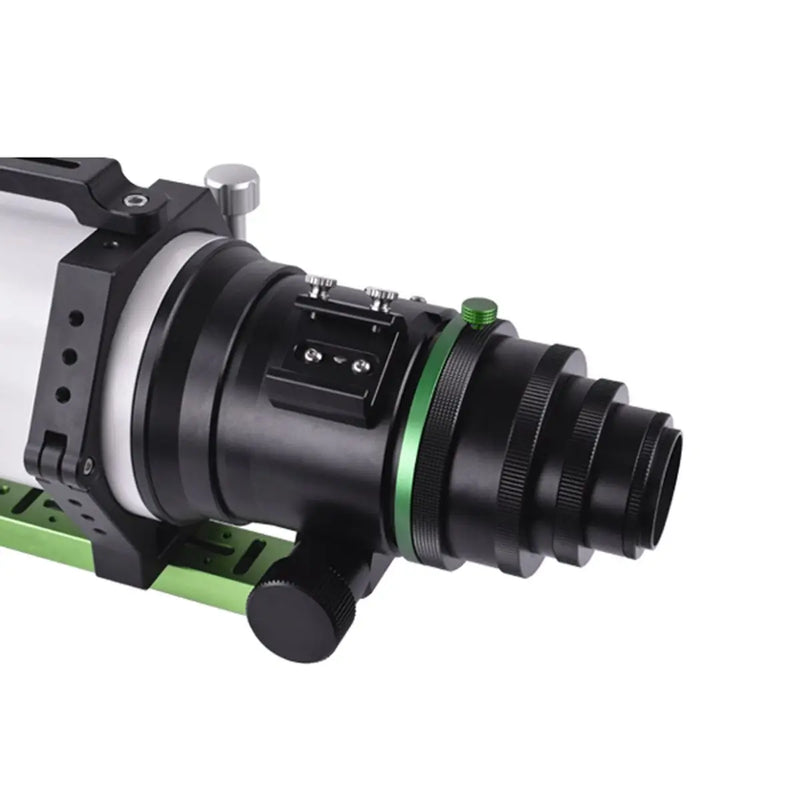

Four-piece photographic adapter：M48×0.75

In the Box

• 107PHQ OTA
• A pair of tube rings,
• Handle
• Askar 300mm Vixen dovetail plate
• Set of four-piece photographic adapters
• Manual
