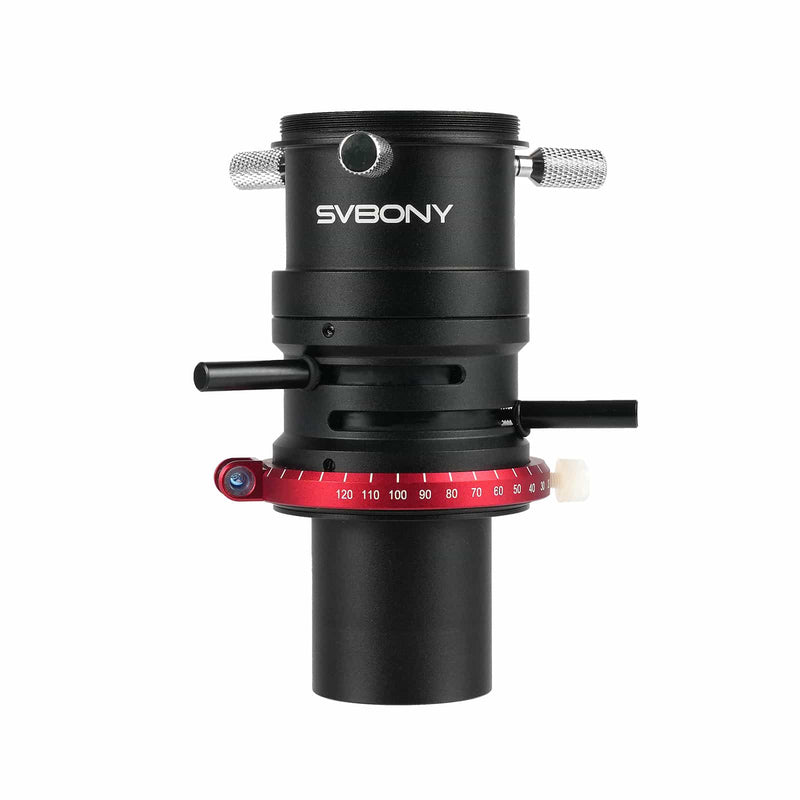

SVBONY SV199 ADC 1.25" Atmospheric Dispersion Corrector

FMC Prism Lens: The prism lens adopts double-sided coating technology to reduce light loss. And the coating adopts anti-reflection broadband, which is applicable from 300nm to 700nm.
Internal Blackened Anti-Reflective Treatment: The black anti-reflective coating inside the atmospheric dispersion corrector can effectively reduce light reflection and scattering, improving image clarity and contrast.
High Adaptation: The SV199 is equipped with a 1.25" lens barrel with a T2 external thread. It can be connected to an eyepiece for visual observation, and can be combined with an astronomical camera for deep sky imaging. This adc meets the dual needs of astronomical observation and photography with a single device.
Bubble Centered Surface Level: The bubble level of the SV199 corrector ensures quick and accurate level positioning. The center of the bubble indicates the surface level.

The SV199 atmospheric dispersion corrector (ADC) uses FMC coating. It can minimize light scattering and ghosting artifacts while significantly enhancing image contrast. FMC coating not only has excellent scratch and abrasion resistance, but also effectively reduces chromatic aberration, ensuring perfect optical clarity and reliable performance under different environmental conditions.

Features

The ADC corrects the dispersive effects of earth´s atmosphere. You will get sharper images of planets and moon.
Through the use of 2 high quality BK7 prisms, it corrects the false colour introduced by the earth´s atmosphere.
When used for planetary imaging, it changes the clarity of the image dramatically, particularly in the luminance channel when LRGB imaging.
Adaption is simple through T2 thread & 1.25" barrel on camera side and 1.25" barrel on telescope side.

The bubble level of the SV199 atmospheric dispersion corrector ensures quick and accurate level positioning. The center of the bubble indicates surface level.

The SV199 is equipped with a 1.25" lens barrel with a T2 external thread. It can be connected to an eyepiece for visual observation, and can be combined with an astronomical camera for deep sky imaging. This adc meets the dual needs of astronomical observation and photography with a single device.

How to use SV199 atmospheric dispersion corrector

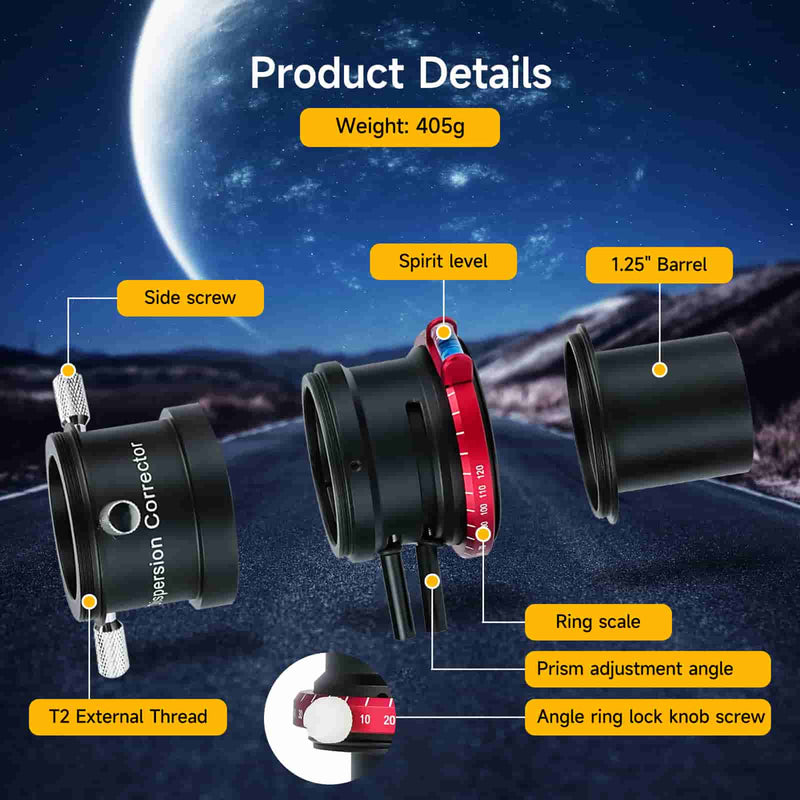

Technical Specifications

Brand	SVBONY
Model	SV199
Name	Atmospheric Dispersion Corrector
Color	Black
Prism type	Wedge
Coating process	Double-sided antireflection
ADC body interface	UV AR coating/300-700nm
1.25-inch T-port	1.25-inch tube/T2 male thread
1.25-inch eyepiece mount	T2 female thread (lower end)
ADC body interface	T2 male thread
Bubble level	Yes
Surface accuracy	1λ
ADC body length	30x48mm/1.18x1.89" (subject to sample)
Effective aperture	24mm/0.94"
Main body processing technology	CNC
Optical structure	One pair of wedge-shaped types
Thread tolerance range	0.05mm/0.0019"
Prism edge technology	Matte ink coating

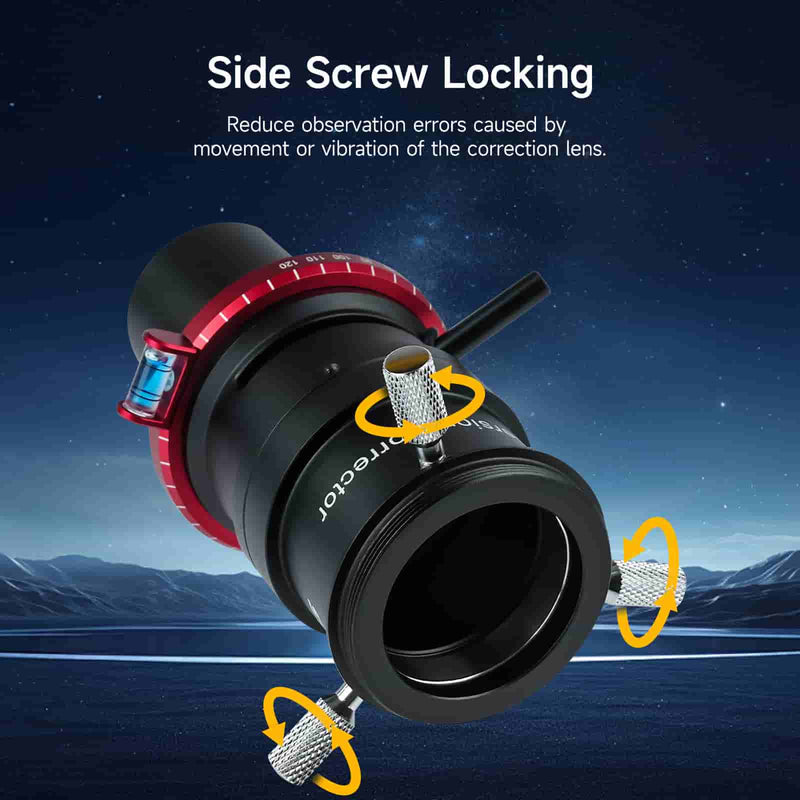

Eyepiece end locking method	Side locking screws
Adjustment rod method	Plastic adjustment lever
Scale dial	Metal/black
Locking screw	Metal/bright silver
Accessories	Dust cover one pair
Optical aperture	24mm
Spirit level	1PCS
Substrate	Bk7
Lateral surface	Blacken to improve contrast

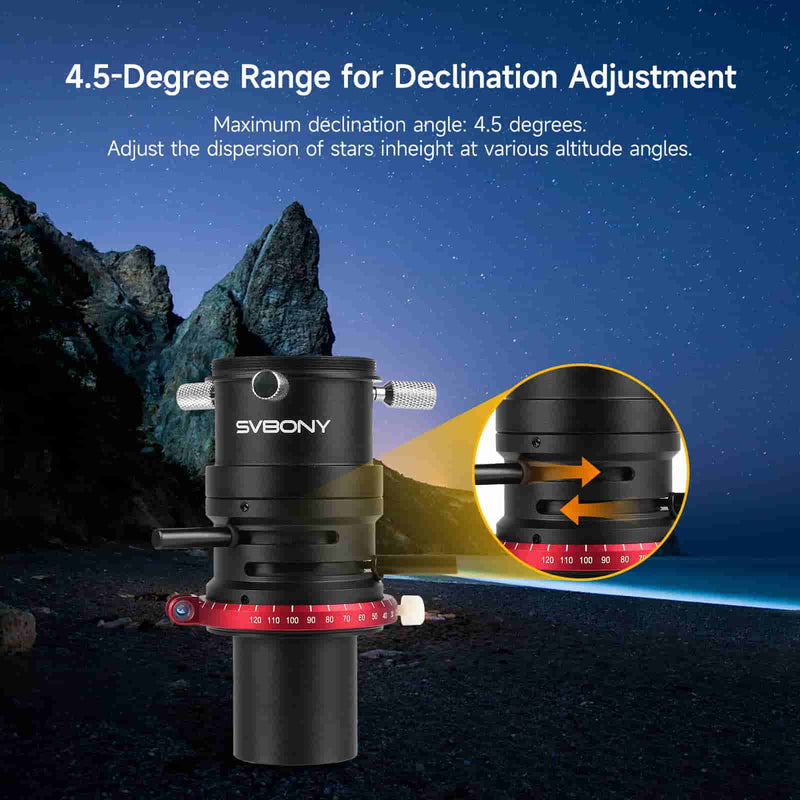

Deviation Angle	2°-2.5°
Dimensions	30x48mm
Weight	405g
Package dimensions	137x105x97mm

In the Box

SVBONY ADC (W9157B)
